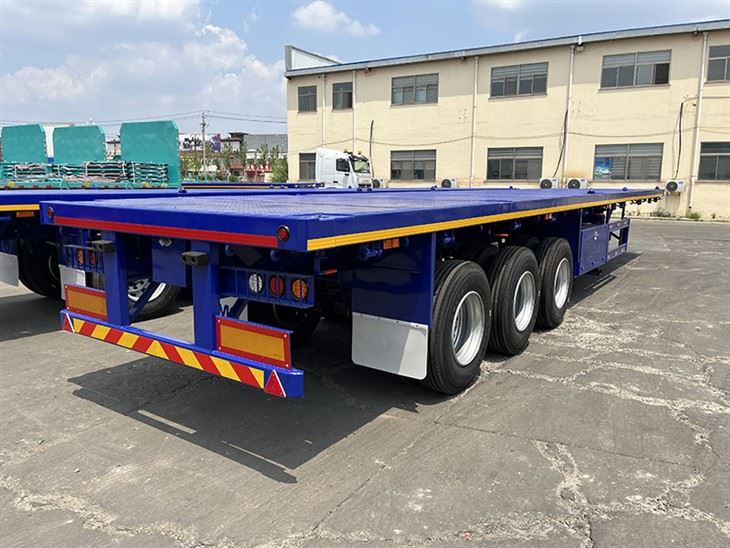

Flatbed Trailers 40ft
Flatbed trailers that are 40ft in length are a popular choice for hauling large, bulky items such as steel coils, machinery, lumber, and even vehicles. These trailers are designed to carry heavy loads and have a maximum weight capacity of 40,000 pounds.
Product Name:Flatbed Trailers 40ft
Price: direct factory. Order now and get 10% off.
Different Parameters, Different Price
Contact us for more infos. Whatsapp/Phone Number: +86 13698615216
Email: global.sales@vehiclemaster.com
Description
Flatbed Trailers 40ft
The Flatbed Trailers 40ft is mainly used for medium and long-distance freight transportation. This kind of semi trailer is mild weight and very promising for its anti-torsion, anti-vibration, anti-bump, and capability to meet exclusive street bearing requirements.
The parameters of Flatbed Trailers 40ft
| Parameter | Description |
| Length | 40ft (12.19 meters) |
| Width | 8.5ft (2.59 meters) |
| Height | 5ft (1.52 meters) |
| Floor Height | 4ft (1.22 meters) |
| Weight | 9,000 pounds (4,082 kg) |
| Payload Capacity | 48,000 pounds (21,772 kg) |
| Axles | Two or three axles |
| Braking System | Air brakes with ABS (Anti-lock Braking System) |
| Suspension | Spring suspension or air ride suspension |
| Tires | 10-12 tires depending on the make and model |
| Decking | Steel or aluminum |
These parameters can say that flatbed trailers 40ft are capable of carrying various loads. They are commonly used for transporting heavy machinery, large equipment, construction materials, and other oversized and overweight loads.
If you are interested in our Flatbed Trailers 40ft or you wanna know more infos, Please contact us.
Whatsapp/Tel:+86 13698615216
Email:global.sales@vehiclemaster.com
Main Structure of Flatbed Trailers 40ft
The Flatbed Trailers 40ft is of the thru shape and the longitudinal beam adopts the straight type. The top of the internet is commonly from 400mm to 550mm relying on one of a kind customer's need. The longitudinal beam is welded by means of computerized submerged arc welding, the body is shot peened, and the move beam penetrates the longitudinal beam and is welded as a whole.
The trailer is composed of tandem dry leaf spring and suspension bearing. The shape is designed to grant sturdy stress and energy and aid heavy load and impact.
Flatbed Trailers 40ft is mainly composed of girder-welded I-beam, support beam, connecting beam, side beam, lock head, and traction pin.
Suspension System
The general semi-trailer suspension adopts non-independent metal plate stamping inflexible suspension, which consists of tandem leaf springs and suspension supports. It is used to guide the load and limit the have an impact on of the dynamic load of the flatbed semi trailer producer in kenya. Due to the extraordinary makes use of of one-of-a-kind automobiles like semi trailers, there are additionally distinct necessities for the graph of the suspension. There are 4 typically used suspensions: tandem leaf spring stability suspension, single-point suspension, air suspension, and inflexible suspension (one line and two axles).

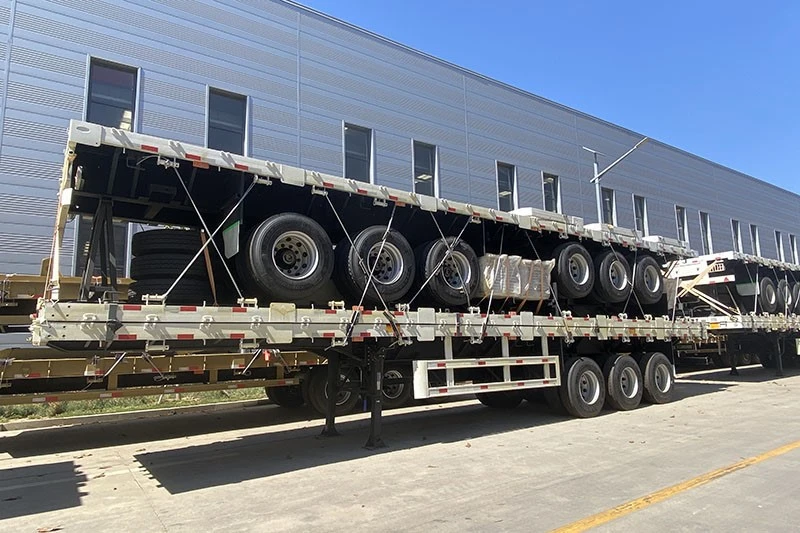

Transport Packing
Plan the load: Determine the type, size, and weight of cargo you will be transporting. Identify any special handling requirements or restrictions.
Use appropriate equipment: Depending on the type of cargo, you may need to use equipment such as pallets, straps, chains, or dunnage to secure the load. Make sure these equipment are in good working condition and can handle the weight of the cargo.
Position the cargo: Position the cargo in the middle of the flatbed, distributing the weight evenly. Ensure that the cargo is properly centered and aligned with the longitudinal axis of the trailer.
Inspect the load: Before commencing the transportation, inspect the cargo and securements to ensure everything is properly in place. Double-check the tension of straps or chains, and make any necessary adjustments..
Unload with care: When unloading the cargo, take the necessary precautions to prevent any accidents or damages. Follow proper unloading procedures and make sure to remove all securement devices before attempting to unload the cargo.
FAQ
Q1. Are you a factory or trading company?
Q2. Could you accept special design and specification?
Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control,or OEM, etc.
Q3. Are you looking for an agent?
Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. Do you have stock?
Yes we have a few stock in our warehouse for your urgent order, but the main design already finished, the only we can change are
some of the spare parts such like tires, axles, stickers, painting etc.
Q5. How to control quality?
We set up all process inspection and quality control standard, include raw materials, production process, finished products.Advanced equipment and standard inspection process ensure the quality.
