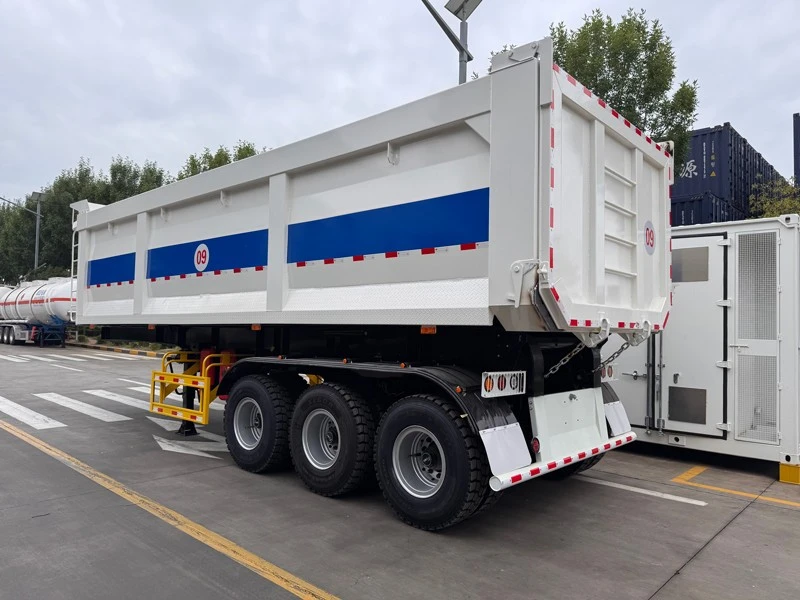

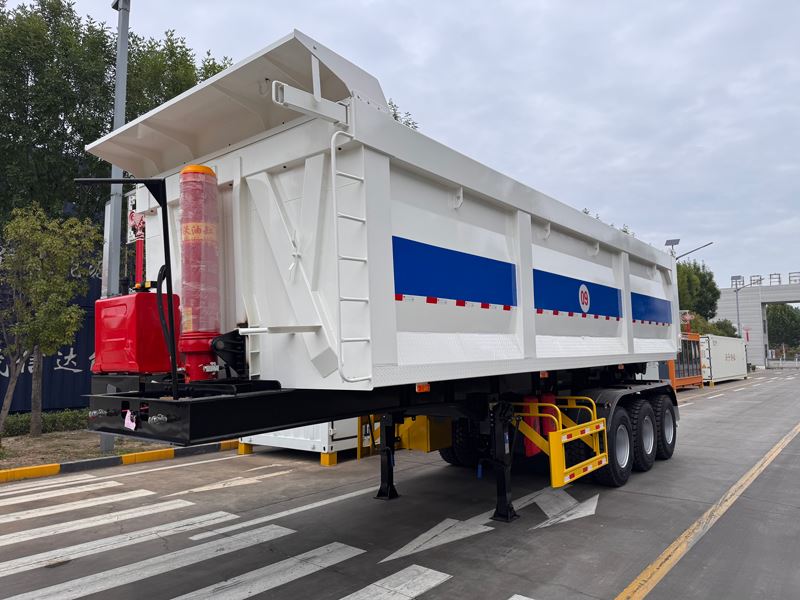

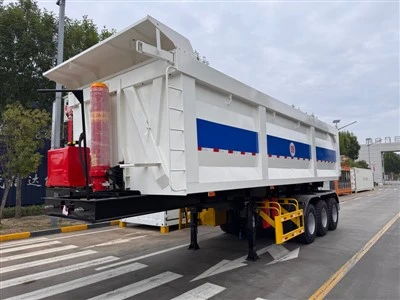

Tri Axle 50 Ton Dump Semi Trailer

This 3 axle 50 ton dump semi trailer for sale supports customized solutions and is sold at factory price. Vehicle Master uses high-quality wear-resistant steel as raw material, offering high cost performance, stable quality, strong reliability, excellent load capacity, and fast unloading speed. It is widely used for transporting and transferring bulk materials such as sand, gravel, earthwork, ores, and construction waste.

Vehicle Master adjusts configurations according to customers' operating requirements. The load capacity supports customization from 30–100 tons, equipped with 2/3/4/5 axle options, and the cargo box volume can be increased or reduced according to demand. We also provide customization options including hydraulic lifting systems, reinforced wear-resistant cargo boxes, cargo box shapes, raised side panels, and more, adapting to different countries' road conditions and engineering transportation requirements.

Applications

• Sand and Gravel Material Transport: Transporting aggregates and mixed materials. The wear-resistant cargo box is suitable for high-frequency construction site operations.
• Earthwork Transport: Handling infrastructure earthwork and backfill transportation. The dump design enables fast and efficient unloading.
• Ore Material Transport: Carrying open-pit ores and crushed stone materials. The high-strength cargo box provides excellent impact resistance and wear resistance.
• Construction Waste Removal: Transporting construction waste and debris. Automatic unloading reduces labor costs.
• Coal Bulk Material Transport: Suitable for coal and coke powder transportation, featuring good sealing performance and clean unloading with minimal residue.

Detailed Specifications

• Product Name: Tri Axle 50 Ton Dump Semi Trailer
• Load Capacity: 50 tons (customizable 30–100 tons)
• Axles: 3 axles, 13/16 tons (2/4/5 axles customizable)
• Axle Brand: FUWA / BPW heavy-duty axles (optional)
• Main Beam Material: Q345/T700 high-strength steel
• Cargo Box Size (Standard Model): 10000×2350×1500mm (customizable)

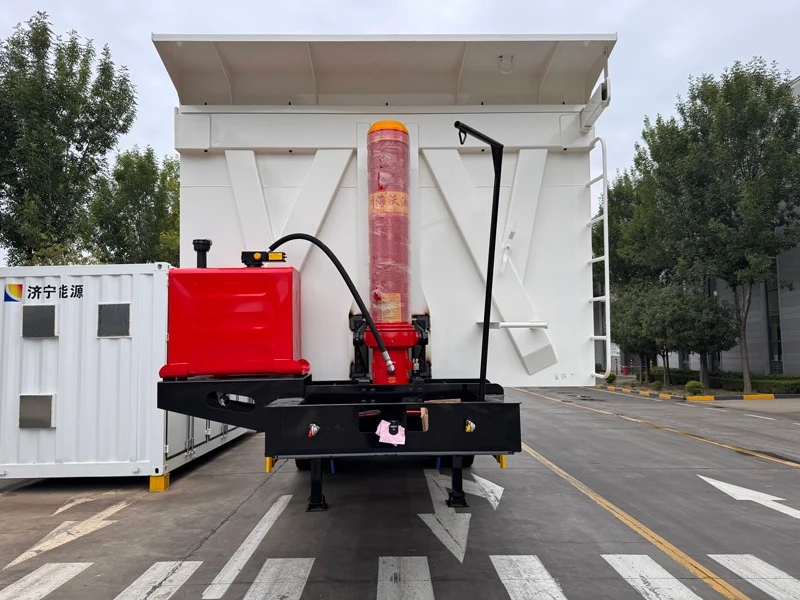

• Hydraulic Cylinder: Front-mounted multi-stage Hyva hydraulic cylinder
• Lifting Angle: 45° standard dumping angle (adjustable)
• King Pin Specification: #50(2")/#90(3.5"), JOST king pin
• Brake System: WABCO air brake + ABS
• Suspension System: Mechanical/Airbag
• Tire Specification: 11.00R20/12R22.5
• Tire Quantity: 12 units (with 2 spare tires provided)
• Rear Door Structure: Automatic opening and closing dump rear door (enhanced sealing optional)
• Protection Configuration: Rear anti-collision protection, side guardrails, safety reflective markings

Price Range

The factory direct selling price range of our Tri Axle 50 Ton Dump Semi Trailer is USD 11,800–18,000. The price is mainly affected by load capacity, cargo box volume, steel plate thickness, axle configuration, hydraulic system brand, imported component selection, customized structures, and purchase quantity.

Core Processes

• Automatic Submerged Arc Welding Process: Our main beam uses high-strength steel as raw material and adopts automatic submerged arc welding technology. The weld seams are uniform and full with sufficient penetration, improving the trailer's impact resistance and torsional strength. It can withstand long-term heavy-duty lifting operations without cracking or deformation.
• Polyurethane Combination Painting Process: After oil removal, rust removal, and phosphating pretreatment, the entire trailer adopts polyurethane combination painting technology. The paint film has strong adhesion and high hardness, with excellent scratch resistance, rust resistance, and acid/alkali corrosion resistance. It can adapt to harsh environments such as construction sites, mines, humid areas, and rainy conditions for a long service life.

Product Features

• High-Strength Steel: We have cooperated with large domestic steel suppliers for many years. All raw materials undergo strict quality inspections upon arrival. The main beam provides excellent compression resistance, and the cargo box offers outstanding wear resistance, ensuring heavy-duty durability from the source.
• Brand Components: Equipped with FUWA/BPW axles, WABCO braking systems, JOST king pins, and other well-known components, providing stable operation, low failure rates, strong compatibility, and lower maintenance costs.
• High-Efficiency Hydraulic System: Equipped with multi-stage hydraulic lifting cylinders, providing powerful lifting force, smooth lifting and lowering, fast unloading speed, and minimal residue, significantly improving engineering transportation efficiency.
• Wear-Resistant Cargo Box: The cargo box is made of high-strength wear-resistant steel plates, offering excellent impact resistance and durability. It is resistant to deformation and damage when transporting hard materials such as gravel and ore, making it suitable for frequent heavy-duty operations.
• Sealed Rear Door Design: The rear door opens and closes smoothly with excellent sealing performance, effectively preventing fine materials and construction waste from leaking or creating dust during transportation. It meets environmental protection requirements and international road transportation standards.
• Stable Safety System: Equipped with professional braking, suspension, and safety protection structures, ensuring stable heavy-load driving, sensitive braking response, and reduced rollover risks on rough roads, providing comprehensive transportation safety.

Our Advantages

• Factory Direct Sales: We are a semi trailer factory with a complete production line. There is no middleman markup, offering transparent and affordable prices. Production quality and delivery schedules are fully controllable.
• After-Sales Service: The entire trailer comes with a one-year official warranty service and lifetime supply of original spare parts.
• Multiple Payment Methods: Supports T/T, L/C, and other international trade payment methods, ensuring secure and convenient transactions for overseas customers with different settlement preferences.
• Transportation Without Worries: We have mature overseas logistics channels and provide complete ocean shipping, container loading, and customs clearance services. The cargo is tracked throughout the process to ensure safe and on-time delivery.

Contact Us

Want to purchase a high-quality Tri Axle 50 Ton Dump Semi Trailer at factory price? Vehicle Master is your best choice. We are a factory with 40 years of semi trailer manufacturing and export experience, providing excellent quality and competitive prices.

For detailed specifications, customization solutions, and accurate factory quotations, please feel free to contact us via WhatsApp. We will provide one-on-one professional service and cost-effective transportation solutions.
