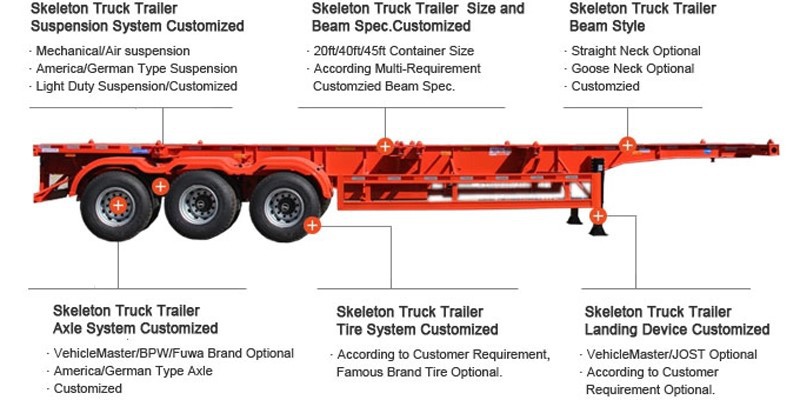

20/40ft Shipping Container Trailer: Heavy-Duty Chassis for Port-to-Hub Logistics
Heavy-duty 20ft/40ft shipping container trailers built for port operations and intermodal transport. Q345/T700 steel frame, 3 axle options, 20–80 ton capacity, electrophoretic coating. Factory direct. Get a quote.
Length: 20/40/45ft
Capacity: 20-80 Tons
Container Loading: 1*20ft, 2*20ft, 1*40ft.
Price: Factory Price. Price varies according to features.
Description
Anyone who has seen containers standing idle at port terminals while trucks queue up has witnessed this profit-crushing bottleneck. The issue is not the container, but the chassis supporting it.
A weak frame bends under repeated loading. A flimsy suspension bruises cargo. Cheap twist locks slip on the highway. And when your chassis breaks down mid-route, the whole supply chain pays.
That's why we engineered this shipping container trailer for the kind of abuse that fakes out cheaper trailers.
The True Cost of Cutting Corners on Trailer Frames
Let's talk about what separates a chassis that lasts five years from one that lasts fifteen.
The main beam is where it starts. We use Q345 or T700 high-strength steel - not the mild steel you'll find on budget trailers. T700 has a yield strength of 690 MPa, meaning it flexes under heavy load without permanently deforming. This makes all the difference when you haul 40-ton containers day in and day out along bumpy roads linking ports and inland depots.
The suspension choice dictates your maintenance bill. Our standard mechanical suspension (Vehicle Master or BPW brand) handles heavy loads reliably on decent roads. But for routes with poor surface conditions - think coastal roads in West Africa or industrial zones in Southeast Asia - our optional air suspension absorbs shocks that would otherwise crack welds and bend frames within a year.
Twist locks deserve special mention. These are the locking pins that secure your container firmly to the frame. Our standard setup includes ISO-certified hardened-steel twist locks: 4 sets for 20ft containers and 12 sets for 40ft units. Low-cost substitutes are built from substandard materials that wear out under constant vibration. If a twist lock fails at 80 km/h, you face not only lost cargo, but also damaged reputation.
The landing gear takes the full weight when the truck disconnects. Our 28-ton two-speed JOST landing gear lowers smoothly even when the chassis is fully loaded - a feature that matters when you're operating in muddy port yards where stability isn't guaranteed.
Specifications
|
Parameter |
Details |
|
Overall Length |
20ft / 40ft / 45ft (customizable) |
|
Loading Capacity |
20–80 tons |
|
Axle Configuration |
2 / 3 / 4 axles (FUWA / BPW / Vehicle Master) |
|
Main Beam Material |
Q345 / T700 high-strength steel |
|
Suspension Type |
Mechanical or air suspension |
|
Leaf Spring |
90mm×13mm×10 pcs / 90mm×16mm×10 pcs |
|
Braking System |
High-efficiency air brake (ABS optional) |
|
Twist Locks |
4 sets (20ft) / 12 sets (40ft) |
|
Landing Gear |
28-ton two-speed (JOST or equivalent) |
|
Kingpin |
#50 (2") / #90 (3.5") |
|
Tires |
12R22.5 × 12/16 pieces |
|
Rims |
9.0×22.5 steel or aluminum |
|
Painting |
Electrophoretic coating |
|
Optional Extras |
LED lights, reflective tape, toolbox, spare tire rack |

Where This Chassis Earns Its Keep
This isn't a show trailer. It's built for environments where containers move constantly and conditions are unforgiving.
Port terminal operations. Short-haul runs between quay and container yard. Multiple trips per day. Constant loading and unloading. Our reinforced frame and heavy-duty axle options handle the daily abuse of port work without developing cracks or alignment issues.
Intermodal Yard Haulage. Moving containers from port to rail terminal or inland distribution center. Distances of 100–500 km on mixed road conditions. Opting for air suspension shields cargo against vibration damage, while delivering a lower total cost of ownership compared to lighter alternatives that demand frequent maintenance.
Construction & Project Loads. When you're transporting prefabricated containers housing equipment, offices, or materials to remote sites, this chassis provides the strength and stability needed for heavy, unevenly distributed loads.
For operators who also need a lightweight option for lighter payloads, our 3 axle skeleton semi trailer range covers that ground too - all manufactured in our facility, adhering to identical quality specifications.And if your operation mixes containers with bulk or oversized cargo, a container flatbed trailer might complement your fleet well.
Frequently Asked Questions
Q: Can this trailer carry both 20ft and 40ft containers?
A: Yes. The 20ft version carries one 20ft container. The 40ft version can carry one 40ft container or two 20ft containers. We also offer 45ft configurations for longer or specialized containers.
Q: How do mechanical and air suspension compare for container transport?
A: Mechanical suspension is more robust and cheaper to maintain - ideal for smooth highways and short hauls. Air suspension provides a smoother ride that protects cargo from vibration and reduces frame stress - better for rough roads, long distances, and frequent stop-start operations.
Q: How do you prevent rust in salty port environments?
A: Our electrophoretic coating process forms a consistent, dense protective layer that outperforms standard spray painting. For operations in high-salt coastal environments, extra anti-corrosion treatments are available on request.
Q: What's your delivery time?
A: Standard configurations typically ship within 30–45 days. Custom specifications may require 45–60 days. Contact us for current lead times.
Need a Quote?
We understand you're evaluating several suppliers, and that's exactly what you should do. Send us an inquiry or reach out on WhatsApp. We'll respond with a detailed quote within 24 hours, including photos of your specific unit before it ships.
