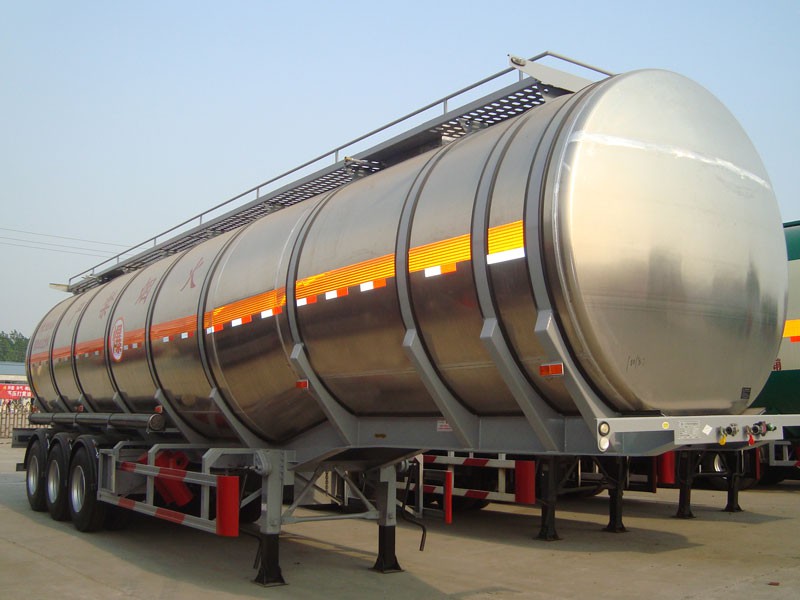

40000L Aluminum Fuel Tanker Trailer

This is a 40,000 liter aluminum fuel tanker trailer for sale, offered at a competitive factory price. Our aluminum fuel tanker trailer features excellent sealing performance, superior quality, and affordable pricing. It is suitable for transporting liquid cargo such as petroleum products, food-grade liquids, and chemical products.

As a professional semi trailer manufacturer, Vehicle Master provides customization services for this aluminum fuel tanker trailer. We support capacity customization from 20,000L to 60,000L, offer 2/3/4 axle configurations based on load requirements, and provide 1–9 compartments. The tank material can also be carbon steel or stainless steel, allowing full customization according to customer needs.

Application

• Petroleum product transportation: Transport gasoline, diesel, and other petroleum products safely without leakage
• Food-grade liquid transportation: Transport edible oil, beverages, and other food liquids, ensuring hygiene and no contamination
• Chemical liquid transportation: Transport chemical liquids with strong corrosion resistance
• Water transportation: Transport water for engineering, domestic, and industrial use

Specifications
All specifications below are based on the standard model.

• Tank capacity: 40000L
• Customizable capacity: 20000L–60000L
• Axles: 3 axles (optional 2 axles / 4 axles)
• Axle configuration: 13/16 ton, FUWA/BPW
• Tank material: Aluminum alloy (optional carbon steel / stainless steel)
• Tank thickness: 6 mm (aluminum alloy), 8 mm (carbon steel)
• Number of compartments: 3 (customizable 1–9 compartments)
• Tank shape: Round (rounded rectangular or elliptical optional)
• Suspension system: Reinforced mechanical suspension (air suspension optional)
• Braking system: WABCO dual-circuit air brake + ABS
• Tire model: 12R22.5 / 11.00R20
• Number of tires: 12 units (2 spare tires provided)
• King pin: #50 (2") / #90 (3.5")
• Landing gear: 28 Tons Two Speed, JOST
• Coating process: Standard powder coating (polyurethane composite coating customizable)

Price Range
The price range of our aluminum fuel tanker trailer is USD 10,000 to USD 30,000. The price is mainly affected by the following factors:

• larger tank capacity requires more materials and increases production cost;
• stainless steel material is more expensive than aluminum alloy and carbon steel;
• more compartments increase manufacturing complexity and cost;
• imported components and customized polyurethane coating are more expensive than standard configurations.

Core Processes

• Welding: The tank body is welded using fully automated robotic welding with high-precision laser positioning, ensuring smooth and uniform weld seams, significantly improving durability and sealing performance. After welding, strict defect inspection and airtightness testing are conducted to prevent liquid leakage during transportation.
• Painting: The standard model uses powder coating with strong adhesion and scratch resistance. We also offer higher-quality polyurethane composite coating with better anti-rust and anti-corrosion performance, capable of withstanding harsh environments and maintaining the tank in good condition over time.

Key Features

• Main beam material: The main beam is made of Q345/T700 high-strength steel, processed with an integrated forming technique, providing strong torsional strength and load-bearing capacity.
• Number of compartments: Customizable from 1 to 9 compartments, each independently sealed. It allows transportation of multiple liquid cargo types simultaneously without contamination, improving efficiency.
• Tank material: Made of high-quality aluminum alloy, lightweight, corrosion-resistant, and easy to clean. Suitable for transporting petroleum and food-grade liquids. Carbon steel and stainless steel options are also available.
• Pumping system: Enables fast loading and unloading of liquid cargo with sealed transfer, ensuring no leakage, easy operation, and stable, reliable performance, effectively improving transfer efficiency.
• Relief valve: Equipped with a high-performance relief valve that automatically releases internal pressure, preventing tank damage caused by overpressure and ensuring safety of both the tank and transported liquids.
• Explosion-proof manhole cover: Installed on the top of the tank, offering excellent sealing and explosion-proof performance. It also facilitates inspection, cleaning, and maintenance.

Our Advantages

• Factory price: By purchasing directly from us, you eliminate middlemen and buy at cost-effective factory pricing.
• Free customization: We provide customization for capacity, compartments, materials, and more without additional design fees, ensuring precise matching to real liquid transportation scenarios.
• One-year warranty: One-year free warranty from the date of delivery, including free repair or replacement services.
• Lifetime spare parts supply: We provide lifetime original spare parts supply service to ensure customers can quickly obtain needed parts and minimize vehicle downtime.

Contact Us
We are a factory with 40 years of semi trailer manufacturing experience, specializing in the production and sale of 40,000L aluminum fuel tanker trailers. We offer factory direct pricing with no middleman markup and provide free personalized customization services to meet your diverse liquid transportation needs. If you are interested in purchasing, want to learn more about configurations and pricing, or have any other inquiries, please contact us via WhatsApp.
