3-Axle 60-Ton Power Transformer Lowbed Trailer — Heavy-Haul Step Deck with Hydraulic Winch for Generator and Substation Equipment

3-Axle 60-Ton Power Transformer Lowbed Trailer — Heavy-Haul Step Deck with Hydraulic Winch for Generator and Substation Equipment

3-axle 60-ton power transformer lowbed with 800mm low deck, hydraulic winch, detachable gooseneck and multi-point support. Hauls transformers, generators and switchgear to substations. Factory direct.

Axle: 3 / 4 / 5 Axles
Capacity: 30 - 150 Tons
Ladder: Mechanical Spring / Hydraulic
Goose Neck Detachable: Available
Tire Style: Covered or Uncovered
Price: Factory Price. Get A Free Quote.

Description



Loading a 50‑ton excavator on a lowbed is straightforward. The machine climbs the ramps under its own power, secures with straps in 15 minutes, and you are ready to roll.



Loading a 50-ton power transformer is nothing like that. The transformer has no tracks, no wheels, no engine. It sits on a concrete plinth in a switchyard, and your job is to get it onto the trailer with a hydraulic winch, a stack of oak dunnage, and a 30-minute conversation about where the center of gravity actually is. A single error - a shifting dunnage block, a broken winch cable, or cargo positioned too far forward - can lead to repair costs running into hundreds of thousands and delay the scheduled energization of a substation.



This 3-axle 60-ton lowbed is built for that job. It is not the cheapest way to move an excavator. It is the way you move a transformer without damage.

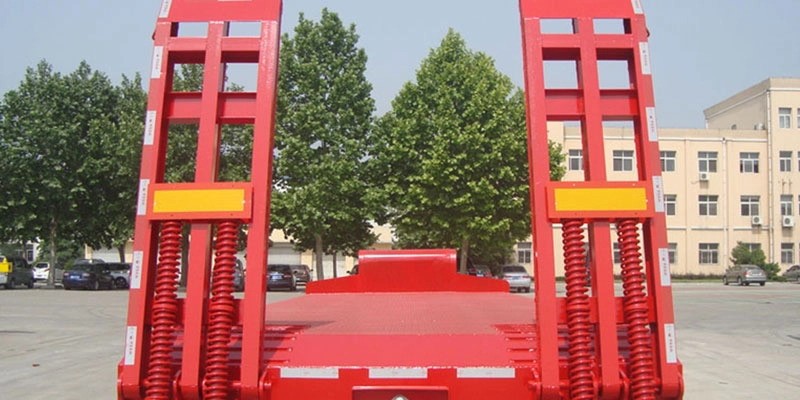

3-axle 60-ton heavy haul lowbed trailer with detachable gooseneck, low flat deck and upright rear loading ramps parked at Vehicle Master factory, ready for power transformer and generator transport



Why the Deck Height Matters

A typical 50 MVA power transformer measures about 8m long × 3m wide × 4.2m tall. Put that on a standard 1,200mm high lowbed deck and your total cargo height is 5.4m. On most African and Central Asian roads, that is over the railway bridge limit (5.0m), over the urban cable limit (4.5m), and over the crossing at most substation gates.



We spec this transformer lowbed with a deck height of 800mm (measured at the main deck, loaded). That drops the total height to 5.0m - still tight, but it clears the 5.0m railway bridges and most substation gate portals. The trade-off is that the gooseneck has to be lower and longer, which means a bigger turning radius and a deck that sits closer to the road. This trailer is not built for rough off‑terrain travel like an excavator lowbed. It is designed for paved and well‑graded access roads. A transformer sitting on an 800 mm deck will take a heavy impact when striking a 200 mm pothole.

If your route has a 4.5m clearance limit, we can go lower - a 650mm deck using dropped axles and a lowered gooseneck - but that version is for one-project moves between a port and a substation, not daily road work.



The Winch Is Not Optional

Once the transformer is set down inside the switchyard, you no longer haul it by driving the trailer. Instead, you pull it into position.

This trailer comes standard with a 10-ton hydraulic winch mounted on the front gooseneck, driven by the tractor's PTO. The winch spools 50 meters of 22mm steel wire rope. The setup is:

  1. Position the trailer so the rear ramps line up with the transformer's sliding base.
  2. Lower the mechanical ramps to the ground (or use the optional hydraulic ramps for heavier pulls).
  3. Attach the winch cable to the transformer's lifting lug (not to the porcelain bushing - that will snap).
  4. Pull at a slow rate of 3–4 m/min, with two workers positioning oak dunnage blocks under the transformer's four steel skids.
  5. Stop every meter to check that the dunnage is flat and the cable is tracking straight on the winch drum.



A 10-ton winch pulls a 50-ton transformer up ramps at about a 10:1 mechanical advantage through the ramp angle. If you are pulling on flat ground (which is how most substation moves work), a 5-ton winch would be enough - but we spec 10 tons because the day you need to pull a stuck load up a wet ramp in the rain, the extra 5 tons is what keeps the cable from snapping.



Dunnage and Weight Distribution - The Part That Goes Wrong

A transformer does not sit evenly on its base. The porcelain bushings at the top carry substantial weight, while the oil tank below has an uneven weight distribution from side to side. Its center of gravity usually sits 200–300 mm ahead of the geometric midpoint, leaning toward the high‑voltage bushing end.



We build the deck with 10 removable cross-bolster positions (every 600mm along the deck), so you can place oak dunnage exactly under the transformer's four steel skids - not where they happen to fall. The deck uses 10mm checkered plate over 14mm main I-beams, so a dunnage block does not punch through when the transformer is winched sideways under tension.

We do not spec side walls or stake sockets on this version. A transformer sitting on dunnage does not need stakes, and stake sockets in the deck create stress points where the steel can crack under the 50-ton point load.



Quick Spec Reference (Transformer 60-Ton Version)



Item Specification
Payload 60 tons (tested to 70t short-cycle)
Deck Height 800mm loaded (650mm drop-axle option)
Deck Length 9,500mm (main deck) + 3,000mm gooseneck
Deck Width 3,000mm (3,500mm extendable side plates)
Deck Surface 10mm checkered plate over 14mm I-beams
Cross Bolsters 10 removable positions, 600mm spacing
Axles 3 × 16t FUWA / BPW
Suspension Heavy 10-leaf mechanical, 120mm axle seat
Winch 10-ton hydraulic, 50m × 22mm wire rope
Ramps Mechanical spring (hydraulic optional)
Gooseneck Detachable mechanical (hydraulic detachable optional)
King Pin JOST 3.5"
Landing Gear JOST 28t two-speed
Brakes WABCO drum + ABS
Tires 12R22.5 × 12
Curb Weight ~9,500kg



Underside view of reinforced I-beam frame and cross members on a power transformer lowbed trailer, showing welded chain tie-down loops and heavy axle suspension mounts



Three Moments That Get People Hurt

We have been called to scenes for all three. They are not abstract safety notes.

  1. The winch cable snaps under side tension. When using a winch to shift a transformer sideways for centering, the cable does not run in a straight line. This angled pull amplifies tension on the winch drum. Always pull along the forward‑rear axis. For lateral adjustments, rely on pry bars and jacks instead of the winch.
  2. A dunnage block kicks out under load. Oak dunnage must sit flat on the deck, with no gap. A block tilted at 15° under a 50-ton load is a block that shoots out sideways the first time you brake. We carry four spare oak blocks with every trailer for this reason.
  3. The load is too far forward on the gooseneck. If the transformer CG is more than 300mm forward of the trailer's balance point, the king pin weight goes over 12 tons - which lifts the tractor's rear drive wheels off the ground. On a wet road, that is how a tractor does a wheelie on a slight grade. We mark the balance point on the deck with a painted line, and we tell every customer: measure before you winch.





Rear spring-loaded loading ramps on a heavy-duty lowbed trailer, showing ramp mechanism, yellow reflective warning plates and non-slip checker plate deck used for winching transformers and construction equipment



Cargo Not Suitable for This Transformer Trailer

We will tell you straight:

  • A standard 20–35 ton excavator or loader. That job is cheaper and easier on our excavator transport lowbed trailer, which has taller ramps and no winch.
  • Heavier 80–100 ton mining trucks or giant dumpers. You need the 5-axle 100-ton lowbed for that.
  • Containers and General Cargo. A 3-axle 40ft flatbed trailer is lighter and cheaper.
  • A detachable gooseneck you will use every day. If you need to detach the gooseneck for loading self-propelled equipment on every run, the 4-axle detachable gooseneck lowbed spec is faster. This transformer-specific model is designed so the gooseneck can be removed as needed to gain extra clearance.



For the full heavy-haul range, see our lowbed semi trailer catalog. Tell us the equipment you actually move (transformer kVA rating, generator weight, switchgear dimensions), the route clearance (bridge height, gate height), and whether your loading site has a crane or relies on the winch - our engineers will spec the deck height, winch capacity and bolster positions, then send a factory-direct quote within 24 working hours.



FAQ

Q1: Can this winch pull a transformer up ramps, or do we need a crane?

A: The 10-ton winch is rated for pulling up to 60 tons on a 10% grade. If your loading site has a crane available, that is always faster. But the winch is there for sites with no crane - typical rural substation projects in Africa and Central Asia.

Q2: Do you include dunnage blocks when shipping the trailer?

A: We ship four oak dunnage blocks (200mm × 200mm × 800mm) and a 4-pack of wooden wedges. Most customers cut their own oak blocks locally once they see the size we use.

Q3: What is the difference between mechanical and hydraulic detachable gooseneck?

A: Mechanical goose neck removal takes 20 minutes with jacks and is cheaper by about $2,500. Hydraulic removal (PTO-driven) takes 3 minutes and is worth it if you detach more than once a week. For transformer moves (one goose neck removal per project), mechanical is usually fine.

Q4: What is the delivery time to an African or Central Asian substation project?

A: Production takes 30 working days upon receipt of deposit for a standard 60‑ton transformer lowbed, with an additional 35–45 days for ocean shipping.The winch and wire rope are shipped assembled; the ramps ship separately. Local assembly is about one day.
