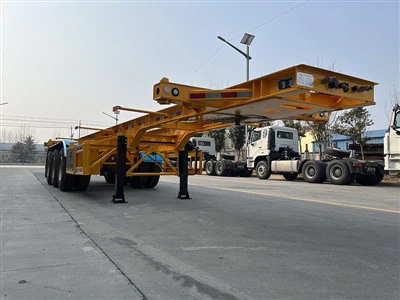

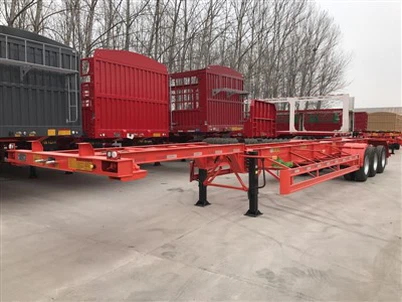

3 Axle 40ft Skeleton Semi Trailer For Africa



This 3 axle 40ft skeleton semi trailer for sale in Africa is manufactured by Vehicle Master and offered at factory-direct pricing. The main frame beams are made of Q345/T700 high-strength steel, featuring a robust structure specifically designed to cope with Africa's complex and diverse road conditions, delivering excellent load capacity and long-term durability.

As a semi-trailer factory, this 3 axle 40ft skeleton semi trailer supports personalized customization. Length options include 20/40/45 ft and other sizes, with configurations of 2/3/4 axles and a load capacity range of 20–60 tons. Optional suspension systems and cargo securing solutions are also available to precisely match diverse transport requirements.







• Container Transportation: Efficiently carries various standard containers, enabling high-efficiency container transfer.
• Modular Building Transport: Safely transports modular housing components while ensuring structural integrity.
• Long Material Transport: The open structure facilitates securing extra-long cargo such as steel and pipes.
• Port Internal Transfer: Designed specifically for port terminals to achieve fast short-distance container handling.





• Model: 3 Axle 40ft Skeleton Semi Trailer
• Length: 40 ft (approx. 12400 mm)
• Custom Lengths: 20/40/45 ft
• Rated Load: 20–60 tons
• Axle Configuration: 3 axles, 13/16 tons, FUWA/BPW (2/4 axle options available)
• Main Beam Material: Q345/T700
• Type: Gooseneck or Tandem
• Suspension System: Leaf spring suspension / Air suspension
• Brake System: WABCO air brake system, ABS optional
• Twist Locks: 12 pieces
• Tire: 12R22.5 * 12 pieces (4 tires per axle)
• King Pin: #50 (2") / #90 (3.5"), JOST / Other Brand
• Landing Gear: 28 Tons Two Speed, JOST / Other Brand







• As a semi-trailer manufacturer and dealer, the price range of our skeleton semi trailers is USD 6,000–15,000. Pricing is mainly determined by factors including core material grades (such as different high-strength steel options like Q345/T700), specification parameters (length, axle quantity, load rating), the complexity of customization requirements, brand selection of suspension and braking system components, as well as purchase volume.



If you need to purchase a skeleton semi trailer at a preferential price or have customization requirements, please contact us via website message or WhatsApp(+86-13698615216).



• Welding Process: The main beams and key load-bearing structures adopt fully automatic submerged arc welding technology, ensuring a stable and controllable welding process with uniform weld formation and sufficient penetration to guarantee structural joint strength and sealing performance. For complex areas such as weld joints and corners, experienced technicians perform precise manual supplementary welding. Multiple weld inspections are carried out to eliminate welding defects and ensure overall structural safety.
• Coating: A full immersion electrophoresis coating process is used. After strict pretreatment for oil and rust removal, the components are immersed in an electrophoresis tank to achieve 360-degree, dead-angle-free coating coverage. Even concealed areas such as frame gaps and corners receive a uniform paint film. The coating offers strong adhesion, excellent salt spray resistance, and superior anti-corrosion performance, effectively withstanding harsh environments characterized by high temperatures, humidity, and dust, thereby extending service life.





• Main Beam Material: Made of Q345/T700 high-strength steel, combining lightweight properties with high rigidity, offering outstanding impact resistance and deformation resistance.
• Twist Locks: Equipped with standardized adjustable twist locks for easy operation and secure locking, accurately fitting containers of different specifications.





• Posts and Guide Rails: Specially designed for internal port transfer, enabling fast and precise container positioning and handling, improving turnaround efficiency.
• Tires: High-quality radial tires with excellent wear resistance and strong puncture resistance, well-suited to various road conditions and providing reliable driving performance.
• Landing Gear: High-strength landing gear ensures smooth and labor-saving lifting and lowering, with firm and reliable support to maintain vehicle stability during loading and unloading.
• Telescopic Design: Some models offer a telescopic skeleton design, allowing flexible adjustment to accommodate different container sizes or cargo, enhancing vehicle versatility.







• Competitive Pricing: Factory-direct supply eliminates middlemen. Bulk purchases can enjoy additional discounts, significantly reducing procurement costs, with multiple payment methods supported.
• Free Customization: We provide free solution design and customization services based on customer business requirements.
• Warranty Service: One-year complete vehicle warranty is provided. During the warranty period, free technical maintenance support and replacement of faulty components are included.
• Lifetime Spare Parts: Continuous supply of original spare parts ensures maintenance needs throughout the entire vehicle lifecycle.



Vehicle Master is a leading semi-trailer factory. By purchasing skeleton semi trailers from us, customers can enjoy factory preferential pricing and high-quality product assurance. Our professional team provides one-stop services including requirement matching, solution customization, and after-sales support. If you need a detailed quotation or product consultation, please feel free to contact us. You can reach us via website message or WhatsApp(+86-13698615216).
