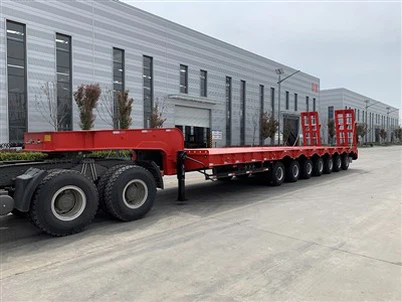

80 Ton Lowbed Trailer With Widened Parts



The 80 ton lowbed trailer manufactured by Vehicle Master is sold at factory-direct prices and is equipped with widened parts. The entire trailer is built with high-grade steel materials and precision welding processes, ensuring a solid structure and outstanding durability. The widened design significantly increases the effective loading width of the platform, making it an ideal solution for transporting various extra-wide and overweight cargo.

Our 80 ton lowbed trailer also supports other customized specifications. The load capacity can be flexibly adjusted within the range of 30–150 tons and can be equipped with 2/3/4/5 axles according to the load requirements. In addition, a wide range of personalized options is available, including steering axles, detachable gooseneck, air suspension, and rear ramps, fully meeting various special transportation needs.







• Construction Machinery Transportation: Used for transporting heavy construction equipment such as excavators, cranes, and bulldozers.
• Large Steel Structure Transportation: Suitable for transporting oversized construction materials such as large bridge prefabricated components and steel beams.
• Mining Equipment Transportation: Designed for the transfer and road transportation of mining trucks and crawler drilling rigs.
• Power Equipment Transportation: Used for long-distance delivery of large components such as wind turbine blades and transformers.





• Model: 80 Ton Lowbed Trailer with Widened Parts
• Main Beam Material: Q345 / T700 high-strength steel
• Standard Load Capacity: 80 tons
• Customizable Load Range: 30–150 tons
• Standard Axles: 4 axles
• Optional Axles: 2 / 3 / 4 / 5 axles
• Multi-Axles: Available
• Axle Capacity: 13 / 16 / 20 tons per axle, BPW / FUWA
• Steering Axles: Available
• Tire Specification: 12R22.5 / 8.25R20
• Tire Style: Covered or Uncovered
• Tire Quantity: 16 units (4 tires per axle)
• Brake System: WABCO dual-circuit air brake + ABS
• Suspension: Mechanical suspension / Air suspension
• Gooseneck Structure: Detachable hydraulic gooseneck
• Ramp: Spring ramp / Hydraulic ramp
• King Pin: #50 (2") / #90 (3.5"), JOST / Other Brand
• Landing Gear: 28 Tons Two Speed, JOST / Other Brand
• Painting: Polyurethane combination painting







• As a semi-trailer factory, the price range of our lowbed semi-trailer is USD 11,000–50,000. The price mainly depends on the following key factors: materials (steel grade and usage), size and configuration (length, width, rated load capacity, and number of axles), accessories (such as steering axles, air suspension, hydraulic ramps, and other advanced optional components), and manufacturing processes (welding, painting, and other production standards). Higher configurations and more complex functions result in higher prices.



If you would like to purchase a lowbed trailer at a favorable price or customize it according to your specific operating requirements, please contact us via the message board at the bottom of the website or via WhatsApp(+86-13698615216).





• Welding: Automatic submerged arc welding combined with manual supplementary welding is adopted. Automatic submerged arc welding is applied to key load-bearing structures such as the main beams and cross beams, producing uniform weld formation and sufficient penetration depth, which enhances structural strength and stability. Subsequently, experienced welders perform manual supplementary welding on all complex nodes and assembly connection parts to ensure there are no blind spots in structural strength, improving fatigue resistance and overall durability.
• Painting: We use a high-performance polyurethane coating system. First, an epoxy primer with excellent adhesion and anti-rust performance is applied, followed by a polyurethane topcoat known for its wear resistance and weather resistance. The paint film adheres strongly and is not easy to peel off, offering excellent scratch resistance to withstand impacts and wear during transportation, while providing strong anti-corrosion protection suitable for various harsh working environments.







• Widened Parts: Equipped with foldable widened parts to meet extra-wide cargo transportation requirements. After widening, the structure is firmly fixed, enhancing transportation flexibility.
• Detachable Gooseneck: The gooseneck section can be quickly detached, allowing front-end loading and unloading after removal and improving operational efficiency.
• Rear Ramps: Equipped with spring-type or hydraulic rear ramps with a solid supporting structure, improving the loading and unloading efficiency of self-propelled equipment.





• Main Beam Material: The main beam is made of Q345 / T700 high-strength steel, offering excellent impact resistance and deformation resistance, capable of withstanding long-term heavy loads.





• Axles: German-type or American-type axles are available. They offer strong load-bearing capacity, stable operation, and high durability, suitable for long-term heavy-load driving.
• Steering Axles: Optional steering axle system significantly reduces the turning radius, improving maneuverability in narrow areas and sharp turns.
• Tires: Both covered and uncovered tire options are available, suitable for heavy-duty transportation, with excellent wear resistance and adaptability to complex road conditions.
• Suspension System: Mechanical and air suspension options are available. Mechanical suspension features a simple structure and easy maintenance, while air suspension provides superior shock absorption performance.







• Factory Price Advantage: Direct factory sales with no middlemen markups ensure customers receive the most competitive ex-factory prices.
• Free Customization: Full-process free customization services are provided, from specification configuration to functional details, precisely matching transportation scenarios.
• Warranty: One-year free warranty for the entire vehicle. All non-human-caused faults during the warranty period are eligible for free repair and parts replacement.
• Spare Parts Supply: A complete spare parts supply system is in place, providing continuous and stable original standard spare parts support for the purchased model.





Vehicle Master is a leading semi-trailer manufacturer and dealer. Purchasing a lowbed trailer through us is the optimal way to obtain a cost-effective, high-quality heavy-duty lowbed transportation solution. Whether you have procurement inquiries, customization requirements, or other related questions, feel free to contact us at any time. We look forward to becoming your reliable business partner with professional products and services. You can contact us via the message board below or via WhatsApp(+86-13698615216).
